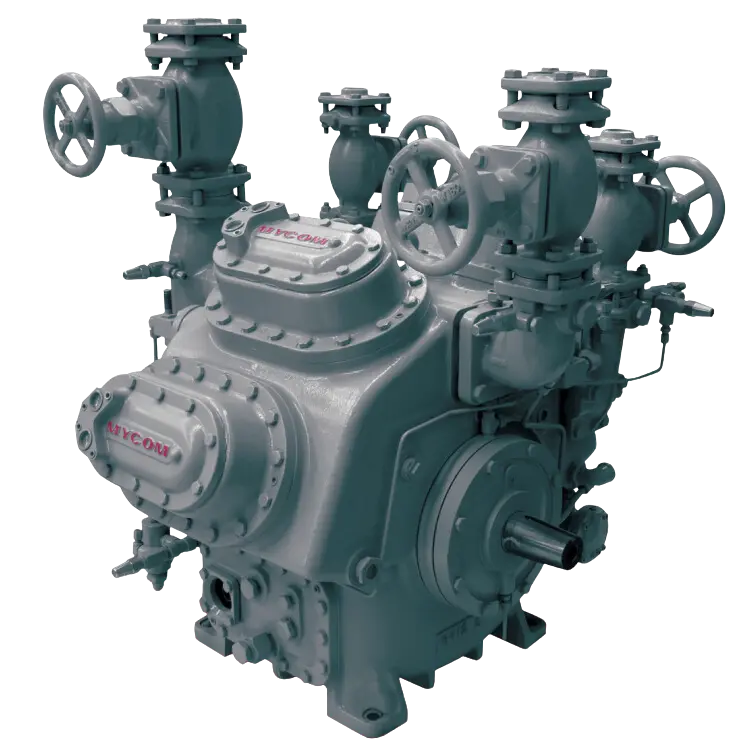

Compressor - 4WBHE Type

https://sesora.id/web/image/product.template/9/image_1920?unique=ae35a1a

Resiprocating/Piston Compressor


Item Model*1 (N/P/F)
4WBHE 6WBHE 8WBHE
Refrigerant Ammonia / Propane / HFCs (R134a, R404A, R507A, R23*2)
Compressor type Reciprocating, Open Type
Number of cylinders 4 6 8
Bore (mm) 130
Stroke (mm) 100
Displacement*3 (m³/h) 309 464 618
Rotation speed (rpm) 800-1200*4
Drive method Direct drive / V-belt
Capacity control (%) 100/50 100/66/33/0*5 100/75/50/25/0*5

*1. Specify the refrigerant by adding a prefix to the type code (N = Ammonia / P = Propane / F = Fluorocarbons).
*2. If R23 is to be used as the refrigerant, the machine will come with special specifications. Please contact us for detailed information.
*3. Displacement at 970 rpm.
*4. The range of rotation speed varies by operating conditions. Please refer to the ranges of use stated in the operating instructions.
*5. The capacity control value of 0% can be realized by an optional feature. Please contact us for detailed information.
